VOOPOO X217 Box MOD Instructions

VOOPOO X217 Box Mod Instructions

Overview

VOOPOO X217 Box Mod is provided with quite an elegant design which speaks of its quality. Adopting the skill of sandblast, the unit offers a smooth sense of touch. Seven types of materials have been used in making the vape mod, and 15 steps of the procedure are required to polish it. Thus, the unit would not let you down aesthetically. It is compatible with dual 21700/20700/18650 batteries and can fire with 217W output.

Furthermore, eight battery charging protection is included to make sure that the internal charging system is safe. 32 bits of a customized chip is installed in it and firing time is merely 0.01 seconds. IA colorful LED light also forms part of the unit. This device is undoubtedly capable of providing you an amazing vaping experience.

VOOPOO X217 Box Mod Features

• TCR Adjustments Mode
• POWER Mode
• VOLTAGE Mode
• CUSTOM Mode
• Constructed with high quality of zinc alloy chassis
• Beautiful inlay design with carbon fiber
• Protection against output over current
• Protection against overcharge and discharge
• Protection against short circuit
• Protection against over temperature
• Protection against brand reverse
• 10seconds of switch timeout protection

VOOPOO X217 Box Mod Specifications

• Dimensions: 93 x 50.6 x 33mm
• Made with zinc alloy, leather, and resin
• 5W to 217W power range
• Compatible with dual 21700 batteries along with 20700/18650 batteries
• Provided with 1.3-inch TFT IPS HD screen
• Range of output voltage: 0V to 7.5V
• Range of output current: 0A to 40A
• Resting current of less than 10uA
• Resistance Range: Power Mode 0.05ohm-3.0ohm TC Mode 0.5ohm-1.5ohm
• Range of temperature: 100 to 315℃
• Upgraded function
• 510 thread connection

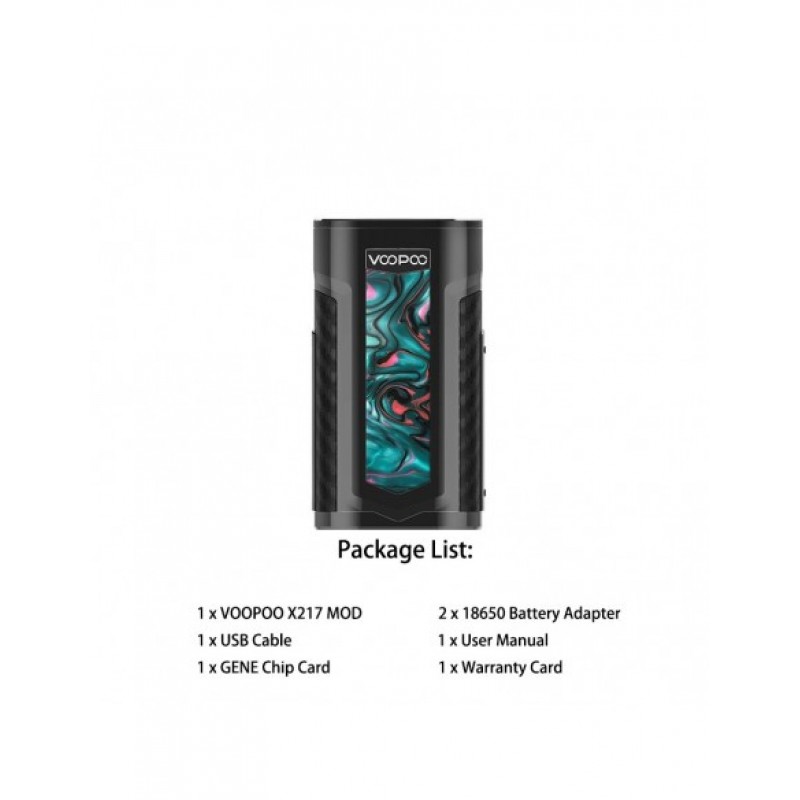

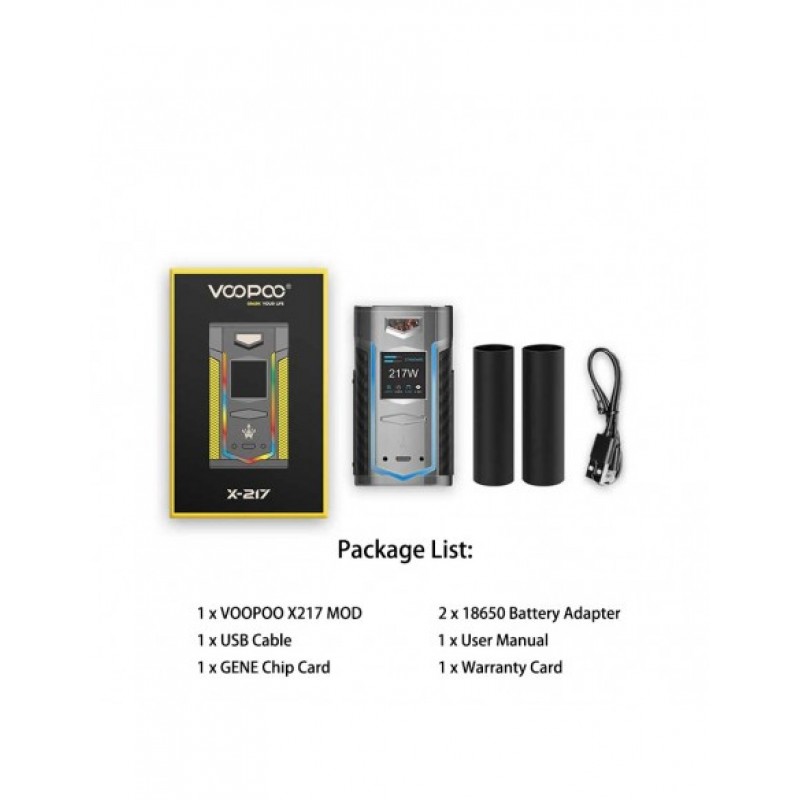

VOOPOO X217 Box Mod Package Includes

• 1 X X217 Box Mod
• 1 X Micro USB
• 1 X Warranty Card
• 1 X Instructional Manual

What's more on VOOPOO & Woody Vapes X217 TC Box Mod?

1. Dual 21700 Batteries

Provided with dual 21700 batteries that are self-developed and have 7500mAh capacity. X217 offers durability along with long-lasting effects. It is also compatible with 20700/18650 battery, giving you more options.

• The Interactive & Colorful LED Light

Robust design with V-shape along with colorful LED light is provided, which ensures that you can have an enjoyable vaping session. The breathing LED light is quite gentle and graduate in standby mode.

• 4 Modes Adjustment

Four modes are offered in terms of power, voltage, temperature control, and custom to ensure that you get your desired taste.

• GENE.FAN Chip

High-end advanced 32 bits of customized chip offered which provide ignition in 0.01 seconds

• TFT high-definition color screen

1.3-inch TFT high definition color screen is included with clear and concise features and user-friendly interface.

• Safe charging

The safe internal charging system is ensured with eight battery charging protections.

• Protection against reverse charging
• Protection against overtime
• Protection against short-circuit
• Protection against over temperature
• Protection against over-current
• Protection against overcharge
• Over-temperature protection
• Output Over-current protection
• Different brands of batteries can be used for balanced charging.

FAQ for VOOPOO & Woody Vapes X217 TC Box Mod Problems

1. How to Change the LED Display Color?

The up and down adjustment buttons have to be pressed at the same time for entering the system settings menu. Pressing the (-) button allows you to scroll to LED select where you can choose the color you like.

• How to Change the Display Wallpaper?

The up and down adjustment buttons have to be pressed at the same time to access the system settings menu. Scroll down to WALLPAPER select using the (-) button and select your desired wallpaper.

• How to Switch Control Modes on the X217 Mod?

The fire or power button has to be pressed thrice in quick succession. This allows you to navigate TC mode, system settings, and power mode.

• How to Switch Power Modes on the X217 Mod?

The up and down adjustment buttons have to be pressed at the same time for accessing the interface. The power mode, select power, volt mode, and quit options would be visible. Scroll to the choice you want via the adjustment buttons.
