VOOPOO Drag Box Mod Instructions

VOOPOO Drag 157W Box Mod Instructions

Overview

VOOPOO Drag Mod is the latest addition to the high-amp box mod segment presenting with a beautifully created carbon fiber insert, where the GENE chip is used in integrated output configurations. Designed with keeping in mind superior aesthetics, the Drag 157W features first class construction and superb carbon fiber studs with attractive lines for a complete finish. On the inside, VOOPOO has integrated the advanced 32-bit GENE chip, which can save up to 157 watts through precise temperature control and TCR settings. Integrated chipset can be updated via firmware with personalization features in the APP connection. When you press the touch key, the current operator frequency is about 0.025 seconds. VOOPOO Drag 157W TC Box Mod, which is characterized by sophistication and build quality, is an excellent choice for all consumers.

VOOPOO is renowned for its production capabilities and original design process. VOOPOO Drag is no different. It instantly becomes a fan favourite when launching a good reputation. Thanks to its classy design and materials, VOOPOO Drag 157W Box Mod provides cutting-edge printing with unique resin plates that distinguish each adjustment from matching colors. The durable and stylish Drag consists of a colorful resin and sturdy alloy frame or different carbon fiber panels with unique options and patterns.

The VOOPOO Drag's temperature can be controlled and adjusted, and the Gene chip provides excellent coil temperature control. It also protects it from overheating. The temperature control in this mod is incredibly accurate and complete. The pull is also compatible with SS3116, Ni200, Ti, NC and TCR. Pressing the lower button converts the temperature from Celsius degrees to Fahrenheit degrees and vice versa. The temperature control can be enabled or disabled through the app function when the device is connected to a computer.

VOOPOO Drag 157W Box Mod Features

• Highly sophisticated 32-Bit GENE Chip
• Multiple protection functions ensure safer vaping experience
• Decorative Carbon Fiber Inlay
• Comprehensive OLED Display

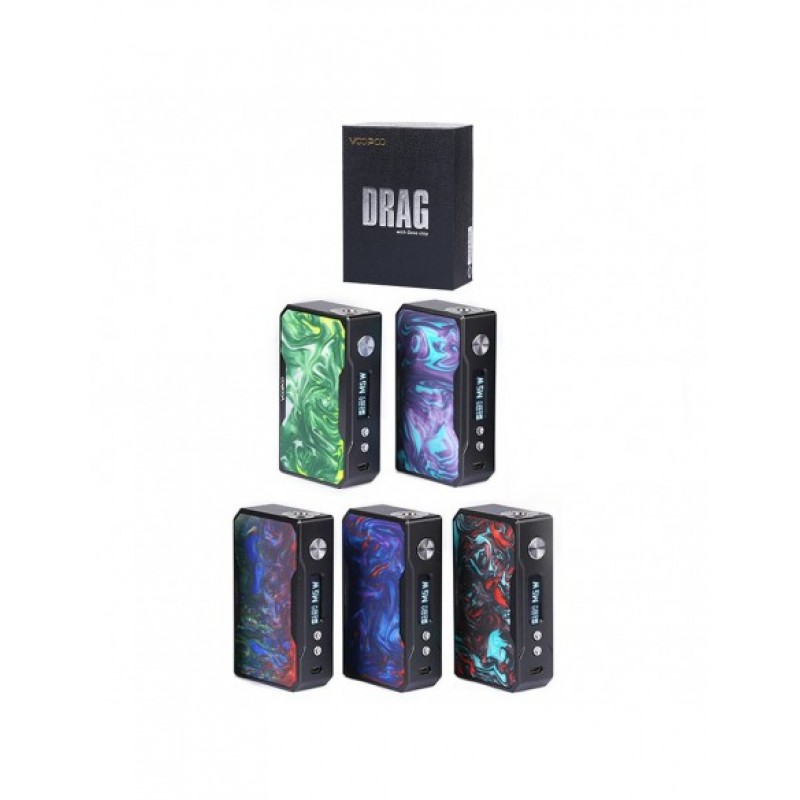

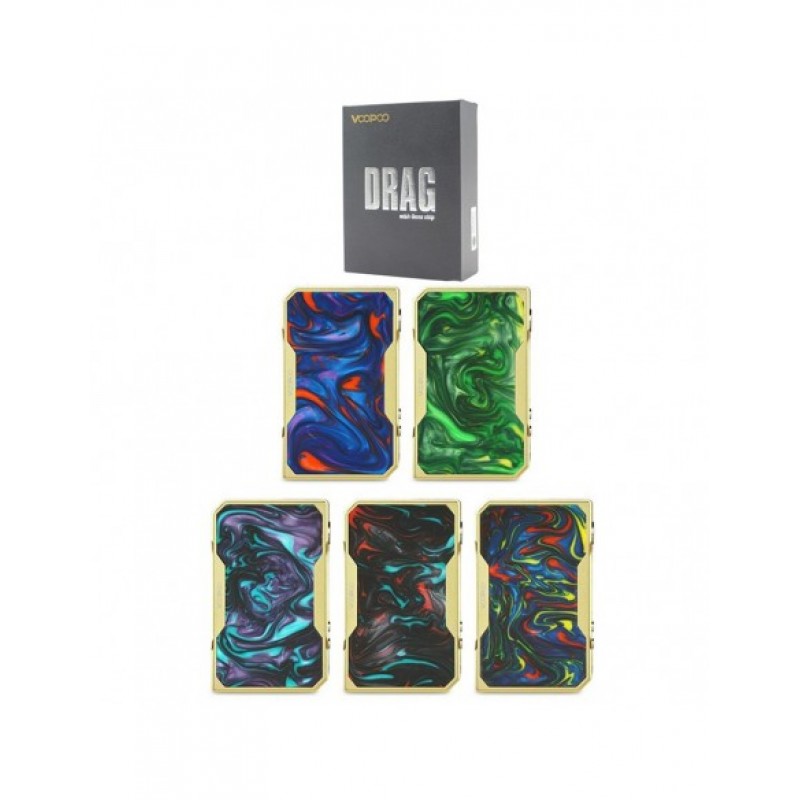

• Available in VOOPOO Drag Resin

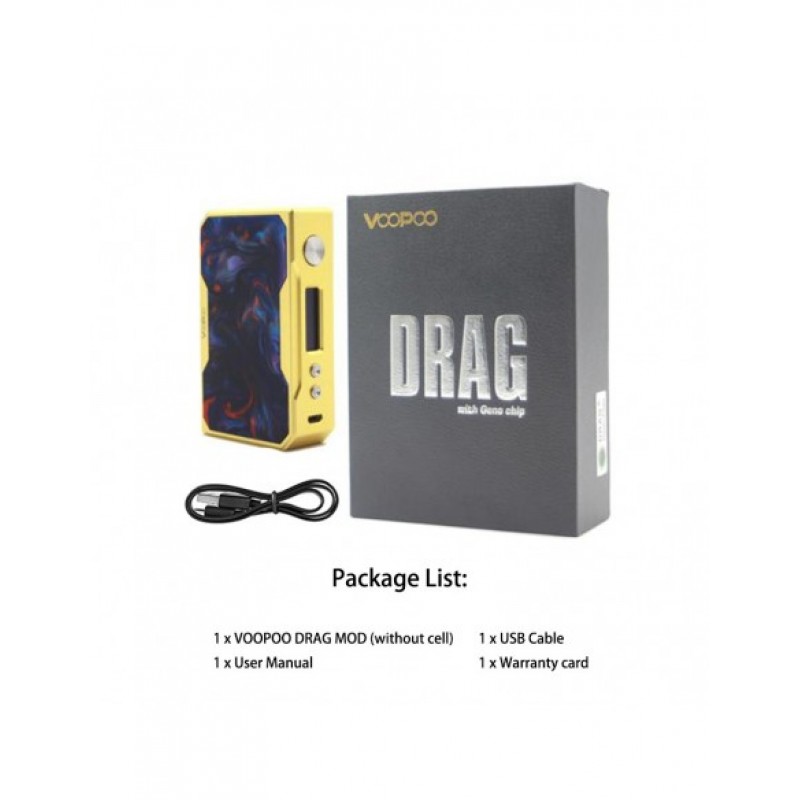

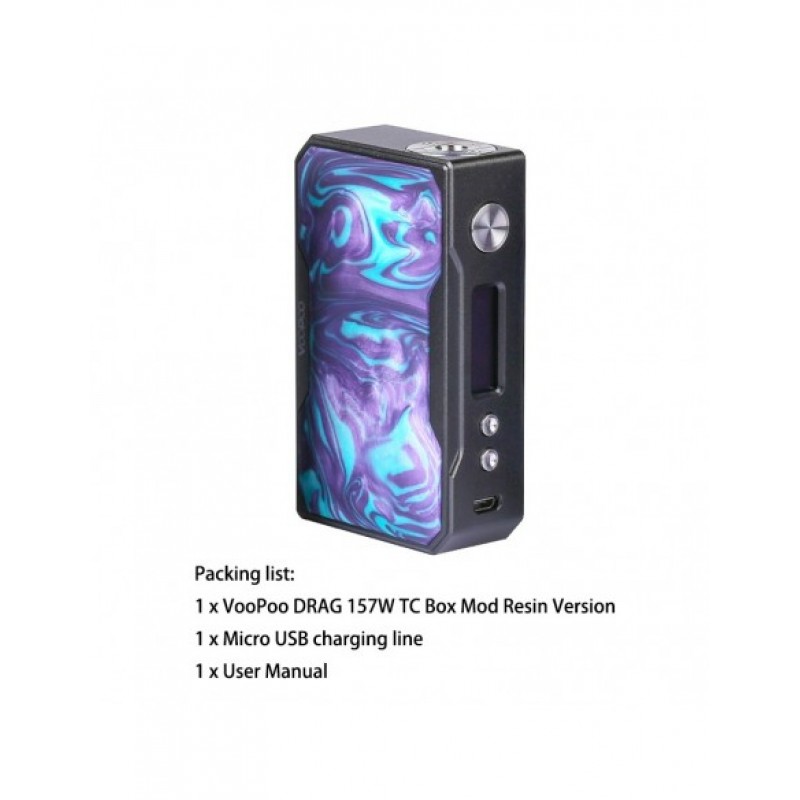

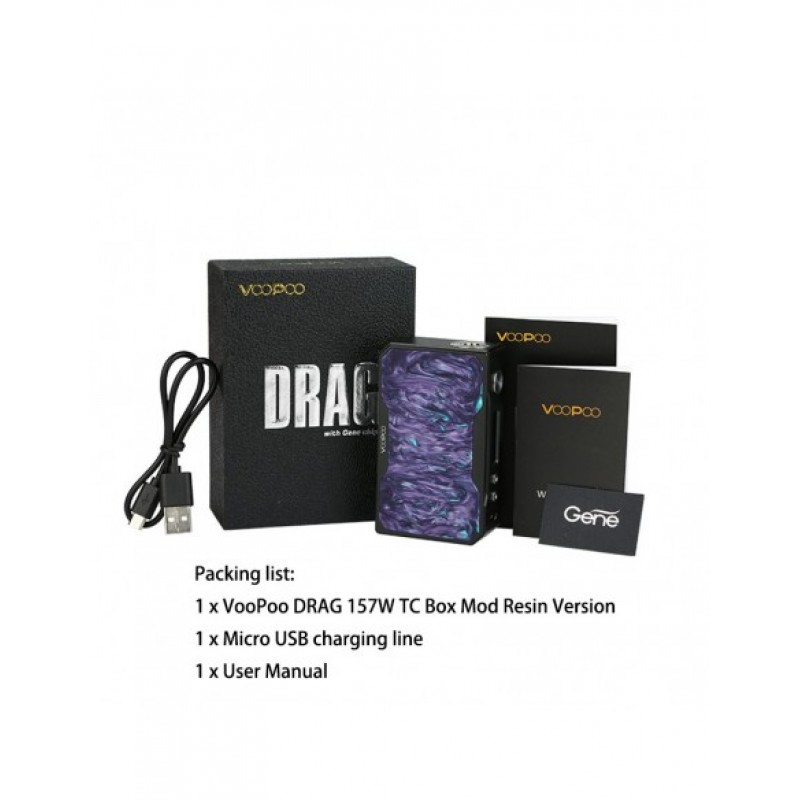

VOOPOO Drag 157W Box Mod Package Includes

1 x VOOPOO Drag 157W TC Box Mod

1 x Micro USB Cable

1 x User Manual

VOOPOO Drag 157W Box Mod Specifications

• Dimensions: 90 mm x 54 mm x 24 mm
• Weight: 212 grams
• Wattage Output Range: 5-157W
• Dual High-Amp 18650 Batteries (Not Included)
• Resistance Range Power Mode: 0.05ohm to 3.0ohm / TC mode 0.05ohm to 1.5ohm
• Temperature range: 100-315 / 200-600 ℉
• Thread: 510

What's More on VOOPOO Drag 157W TC Box Mod

1. Gene Power From Chip

The VOOPOO Drag has a power range of 5 to 157 watts and is powered by the latest dedicated Gene chip. With the world's maximum shutter speed of 0.025 seconds, it works extremely well. The Gene chip, which operates the mod, regulates temperature and controls output with more power.

2. Intelligent Recognition Of New And Old Atomizers

VOOPOO Drag Tank compatibility is universal. Vape mod works with any type of vape and RDA tank. It is compatible with the spray exchange 0.05 to 3ohm. The box automatically corresponds to the output power value, so that the atomizer is safe and durable. In addition, VOOPOO Drag Vape Mod supports spiral tanks that provide the user with maximum flavor and cloud.

3. Multiple Modes For Different Tastes

The mod also has a newly added voltage mode that gives the user the ability to change the amount of steam clouds to quickly find what is ideal for the user. Stable output power ensures spray performance. Because the resistance of the spray coil is customizable, the settings are adjusted to your personal preferences and you will get the best fumigation experience. The operating box of the mod is very simple, and the adjustment steps of the one watt bring a nice touch.

4. Support Balance Charging

Supports Balance charge with different battery brand, avoids battery / power waste and provides more convenience in when in outside or go out.

5. Medium Size, Fits Your Hand

The top and bottom corners are rounded to match the position of the fingers and thumb. It feels stable and comfortable in your grip. It is convenient to carry and use when traveling with its compact portable size and compact design.

6. Eight Security Protections

• Battery Reverse Protection

The Battery Reverse Protection, protects the mod from breakdown.

• Switch Timeout Protection

Intelligent overtime protection will avoid atomizer's coil and cotton burning.

It also prevents burning of atomizer's coil and cotton.

• Over-temperature Protection

TC mode ensures that the mod and battery work properly within the safe temperature range.

• Output Over-current Protection

Smartly detect and turn off when the current exceeds the maximum limit.

• Overcharge Protection

Thanks to special lithium battery protection components, the battery is protected against overload and harm.

• Over discharge Protection

Thanks to special lithium battery protection components, the battery is protected against discharge and damage.

• Short-circuit Protection

When a short circuit is detected, the mod will protect the battery by preventing the circuit returning.

• Support Balance charge with different brand battery

With a special firmware to detect the internal resistance of the battery is monitored under constantly balanced charging conditions.

FAQ for VOOPOO Drag 157W TC Box Mod Problems

1. How To Unlock VOOPOO Drag?

To unlock / lock the device, hold the + and fire button at the same time.

2. How To Update VOOPOO Drag?

(1) Download the configuration software (Windows)

(2) A computer with Windows operating system is required.

(3) Install the configuration software on your computer.

(4) Update the firmware for your VOOPOO modifications.

3. How To Adjust The Temperature Of VOOPOO Drag Box Mod?

(1)When the temperature is set to 100 ° C, press and hold the button. The temperature rises to 600 degrees Fahrenheit

(2)When the temperature is set to 200 ° F, press and hold the button. The temperature rises to 315 degrees Celsius.

(3)Press the shutter button four times quickly to access the wattage setting interface. Then you will see that the letter "W" is blinking. Adjustable wattage power is 5W to 80W.

4. How To Charge The VOOPOO Drag Box Mod?

(1)When you connect the USB charger to a 5V power source, it enters charging mode. During the first 30 seconds of charging, the battery icon indicates the beginning of charging.

(2)If no action is taken for 30 seconds, the mods are put into power saving mode and the battery icon is fully displayed.

(3)When the capacity of two batteries varies, the battery icons on the screen are different.
