LTQ Vapor KONE 510 Thread Box Mod 900mAh Instructions

Overview

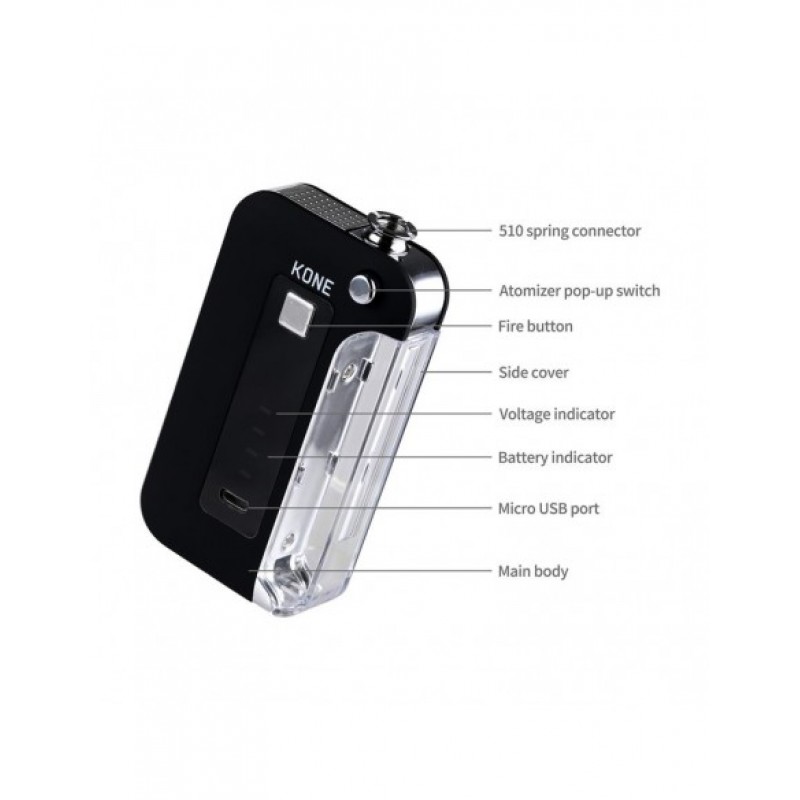

LTQ Vapor released a new product - the LTQ Vapor KONE Battery. It represents a 900mAh embedded battery which comes in black or white color. When you turn it on, you can notice that the colors on the box are changed: green is for 3.0 V, blue is for 3.5 V, and red is for 4.0 V. The process of warming up begins when pressing the button twice. The coil will warm up promptly. The side hidden design gives you the opportunity to set an ordinary atomizer over there that can be installed on the top via pop-up switch while vaping. The permanence is ensured by the micro USB port. The 510 spring connector that is part of the LTQ Vapor KONE is suitable for the majority of 510 thread atomizers.

Features

• Large capacity provided by 900 mAh embedded battery
• Three-level adaptable voltage with LED indicator
• Preheating Option
• Easy placing the atomizer at the hidden design in the side
• Suitable to the majority of 510 vape cartridges
• Reloading by means of a micro USB port
• Option of preheating on 15s for a superb heating result
• Simple for cleaning

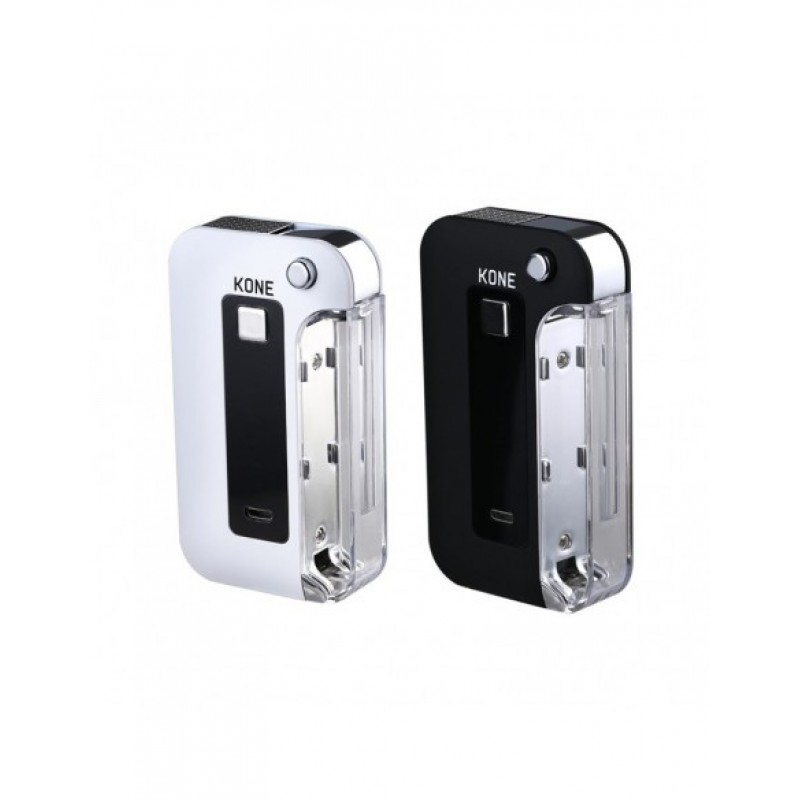

• Two different colors available

Specifications

• Battery Capacity: 900mAh
• Charging Current: 500mAh
• Coil Material: Zinc alloy + PC
• Use For: Oil / Wax
• Preheat Time: 15s
• Battery Voltage: 3.0V - Green Light, 3.5V - Blue Light, 4.0V - Red Light
• Product size: 50mm x 89mm x 20mm
• Product Weight: 0.075kg
• Thread Connection: 510 Thread
• Color: Black / White

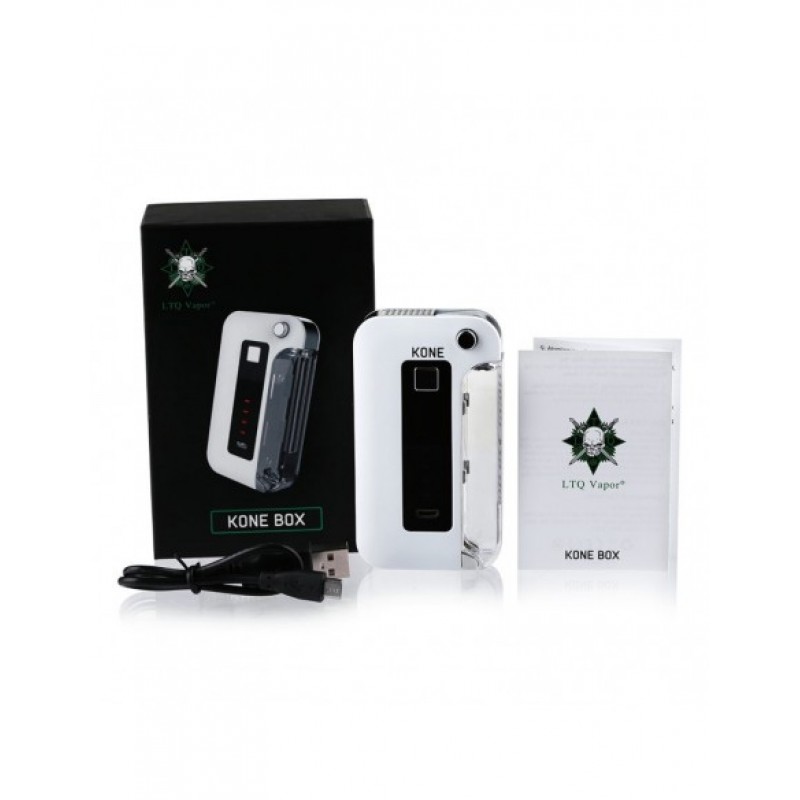

Package includes

1 x LTQ Vapor KONE Box Mod

1 x USB Cable

What's more on LTQ Vapor KONE Box?

LTQ Vapor KONE User Guides

• Working Condition:

1. Power on:

When powered on, the voltage LED lights will red, green and blue flash 3 times in turn, and the machine will go into sleep mode immediately if you don't smoke.

2. Preheating function:

Under the standby state, press the button 2 times continuously to start preheating. At present, the voltage LED lamp keeps flashing. The preheating time is 15 seconds. constant pressure output is 1.8 during preheating; standby after 15S; Short press time or long press time to stop preheating, the next press the button to normal smoking or preheating.

3. Smoking instructions:

When smoking, the current voltage LED is bright, the atomizer emit heat and there was smoke; LED off when not smoking, the atomizer immediately stop heating, into sleep mode, until smoking again to wake up.

4. Three gears of voltage adjustable:

Press the button 3 times continuously within 2 seconds, and the next gear LED flashes for 3 times to change the gear; First gear 3.0v constant voltage output, the button display green light; Second gear 3.5v constant voltage output, the button display blue light; Third gear 4.0v constant voltage output (battery voltage higher than 4.0v will 4.0v output, lower than 4.0v will full power output), the button displays the red light; Press three more times will be repeat.

5. A puff smoke more than 10S:

A puff smoke more than 10S, Output will be cut-off, the current voltage LED flash 3 times.

6. Low-voltage detect:

Voltage detection in the initial stage of smoking, Battery voltage is detected at the beginning of smoking. When the voltage is less than 3.2v, when smoking, the output will be cut-off, and the current voltage LED continuously flashes for 10 times.

7. Short circuit protection:

No matter what the state is as long as the atomizer short circuit or output short circuit, output will be cutoff and the voltage LED light white flashing 3 times.

8. Atomizer range:

More than 0.8R.

9. Atomizer insertion detection:

When the load is detected at the output end, the current voltage LED light flashes for times and then goes out.

10. Power display:

Power display LED lights on when smoking, non-smoking LED lights off; The electric quantity shows three lights from bottom to top, and the first light on indicates the battery voltage below 3.6v; The first and second lights on indicate the battery voltage is 3.6-3.8v. The first, second and third lights on indicate the battery voltage is 3.9-4.2v.

• Charging State:

1.Charging current: Charging at the MIRCO USB port, the charging current is 500mA; Support smoking during charging.

2. Charging access: Connect to the USB port for charging, and the three LED lights will flash white for 3 times at the same time; During the charging process, when at the first level of power, the first LED light flashes in white, the other two lights go out. When the second power level is on, the first LED light is always white, the second LED light is white, and the third LED light is off. The first two LED lights are always white when at the third power level, and the third LED light also is white.

3. Disconnection of charger: After the disconnection of the charger, the white flash of the three LED lights will flash for 3 times.

4. End of the charging: The battery voltage has charged to 4.15v+0.05, the three LED lights show white and long light indicating full charge.

• ON/OFF Function:

Lock function:

Press the button times within seconds, lock the machine, at the same time the current voltage LED light flashes once Press the button 5 times within 2 seconds, turn on the machine, at the same time the current voltage LED light flashes time, return to normal smoking, non-smoking immediately into standby mode.

• Quiescent Current:

The static current: under sleep mode, the static current <=10uA; After shutdown, long press the smoke button, the static current is less than 50uA.
